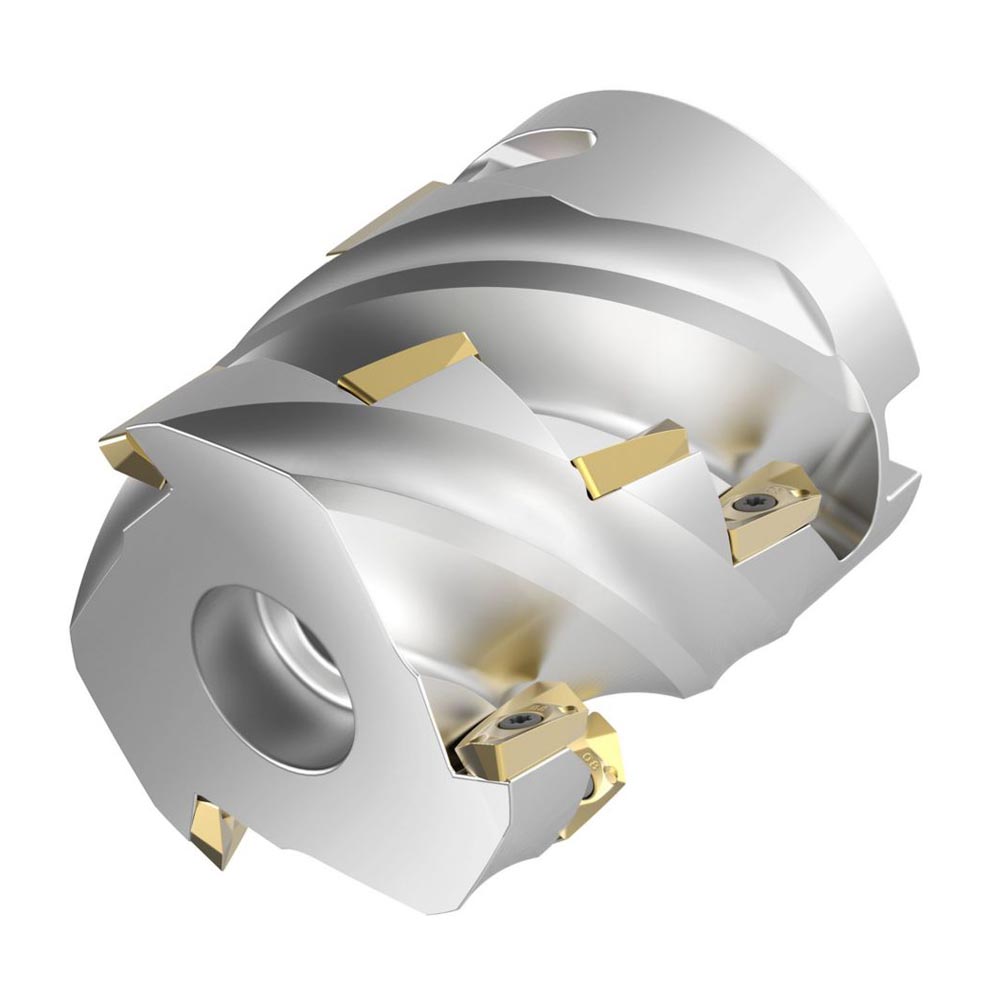

Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3

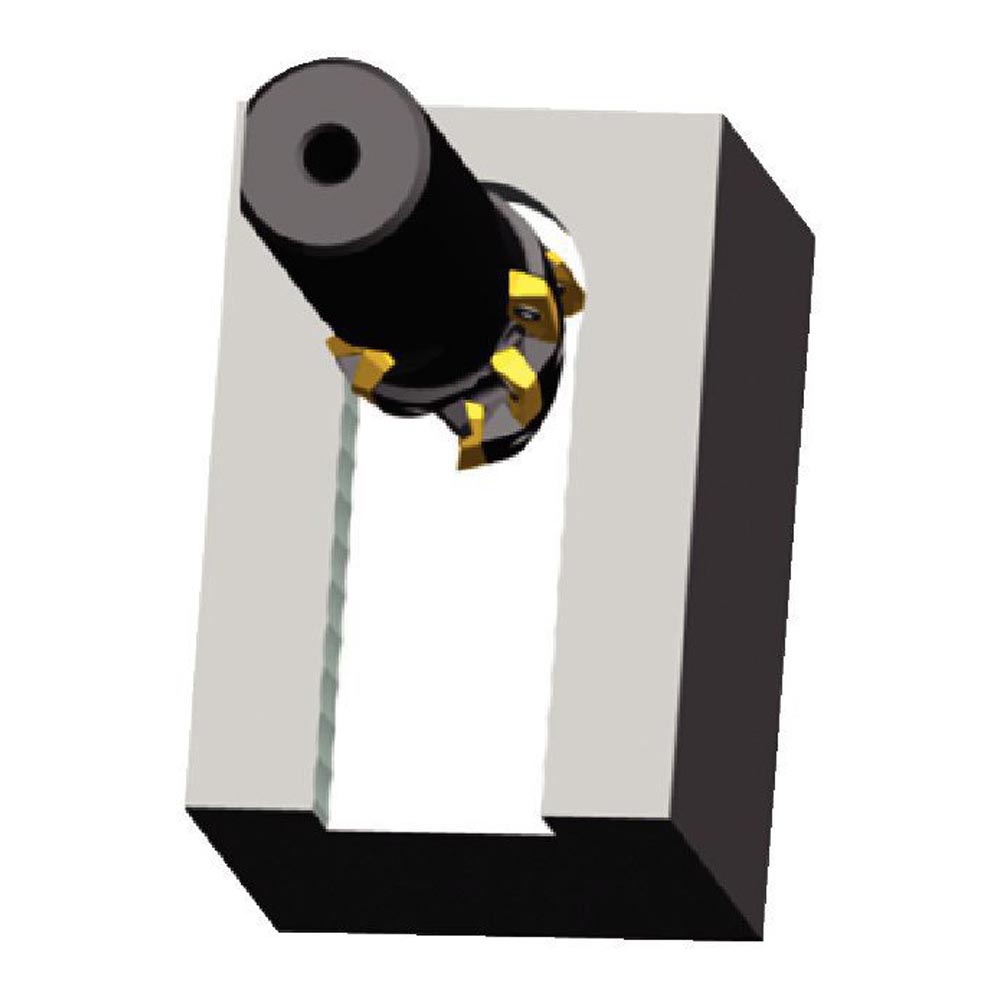

Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 2

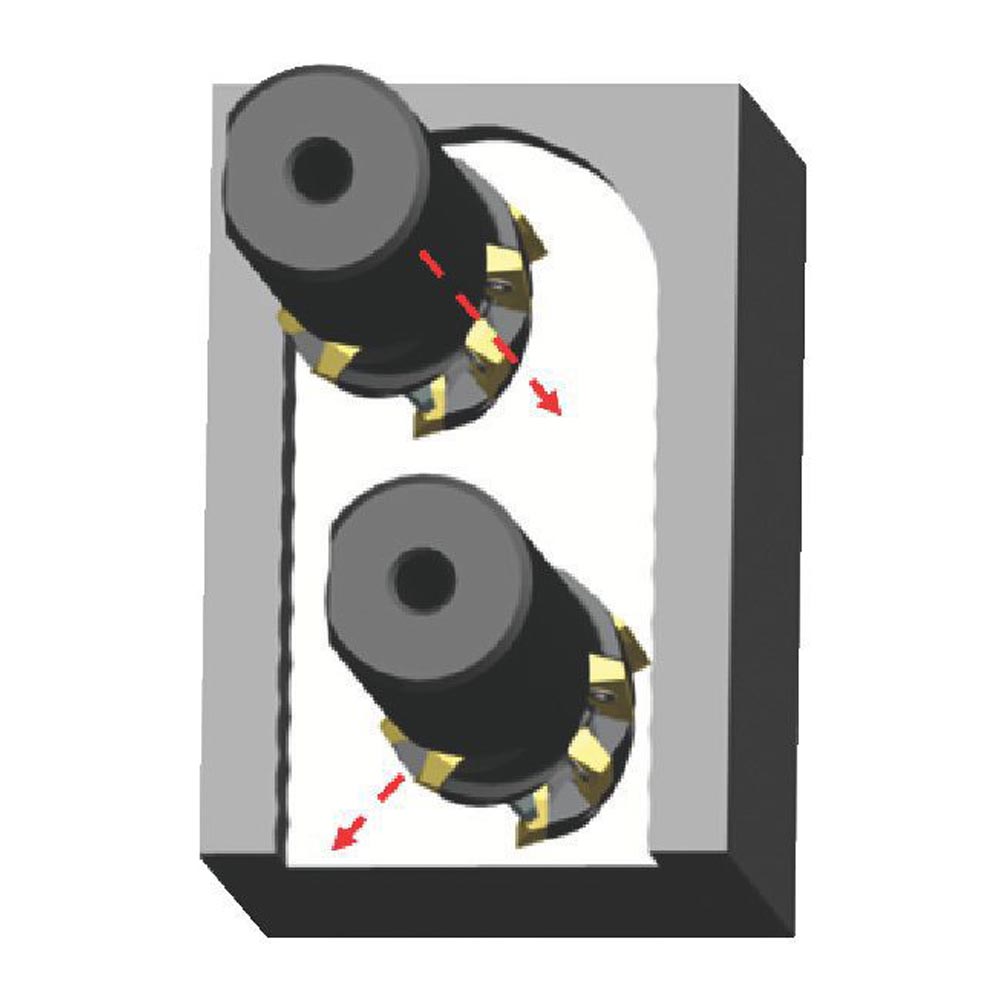

Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 3

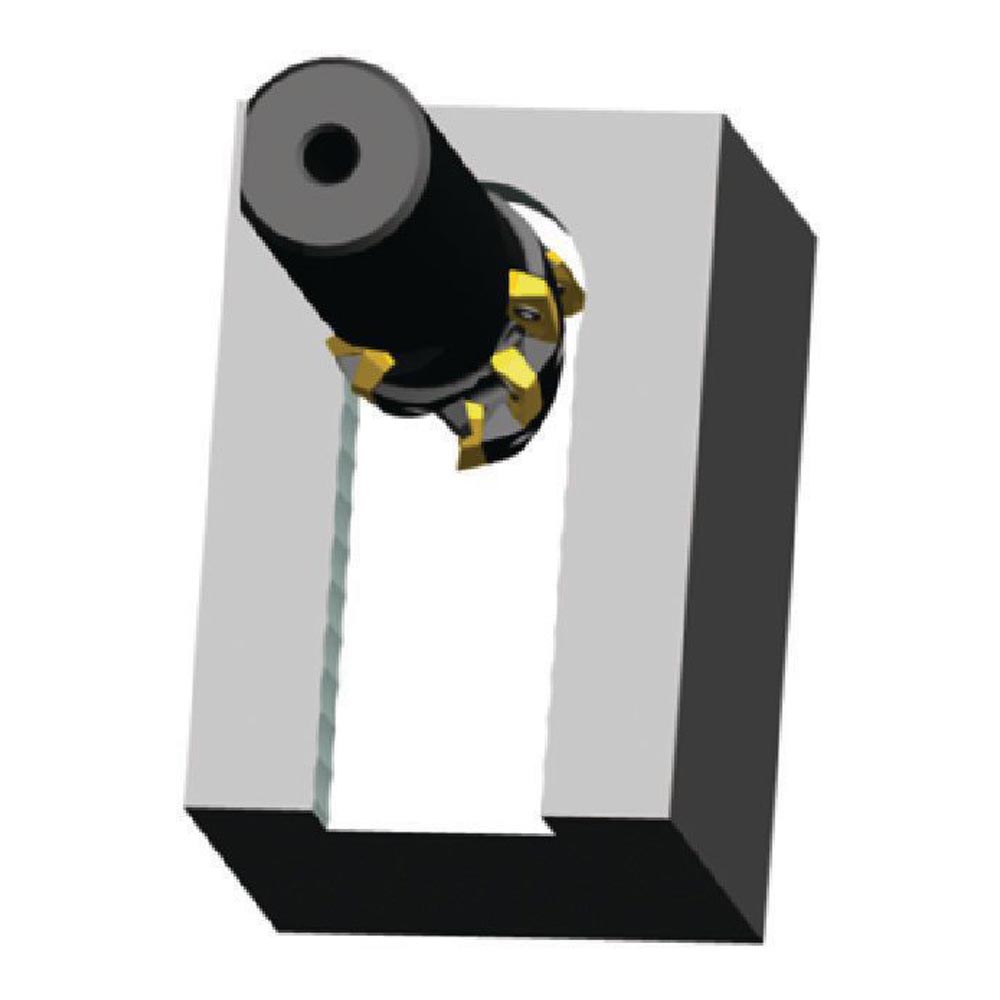

Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 4
  1. Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3
  2. Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 2
  3. Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 3
  4. Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3 - Image 4

Kennametal M1H50T3R65A22S90ED14C9 Mill 1-14 Helical Shell Mill D = 50 Z = 3

SKU: KEN3743037S/C: 3743037
Usually ships in 3 daysSubject to availability

$1,214.14inc
GST

Price Match

Kennametal was founded on the strength of a technological breakthrough, and a list of highlights demonstrates that it has continued to lead its industry in innovation.

  • Aggressive ramping rates.
  • Generates superior surface finish.
  • Mill 90° walls.
  • Axial support pins.
  • Unique coolant nozzles.
  • Kennametal leads the industry in innovation
More Info
View all:
Technical Details
1st Max Cut Depth40.4000mm
Adapter Type Machine SideShell Mill
Adapter/Shank/Bore Dia.22.0000mm
Body Diameter Max48.3800mm
Body Material GroupSteel
Clamping TypeScrew Clamping
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitAngular Axial w/ Nozzle
Coolant SupplyYes
Effective Cutting Dia.50.0000mm
FamilyIndexable Helical Shell Mills
Hand of ToolR - Right
Insert ShapeE - Parallelogram 70°
Machining OperationPeriph/Side/Shldr Mill
MaterialSteel
Max Ramping Angle3.50°
Milling TypeEnd Mill
Number of Flutes3
Number of Inserts9
Overall Length65.0000mm
Position of InsertLay Down
Rake Angle StylePositive-Negative
