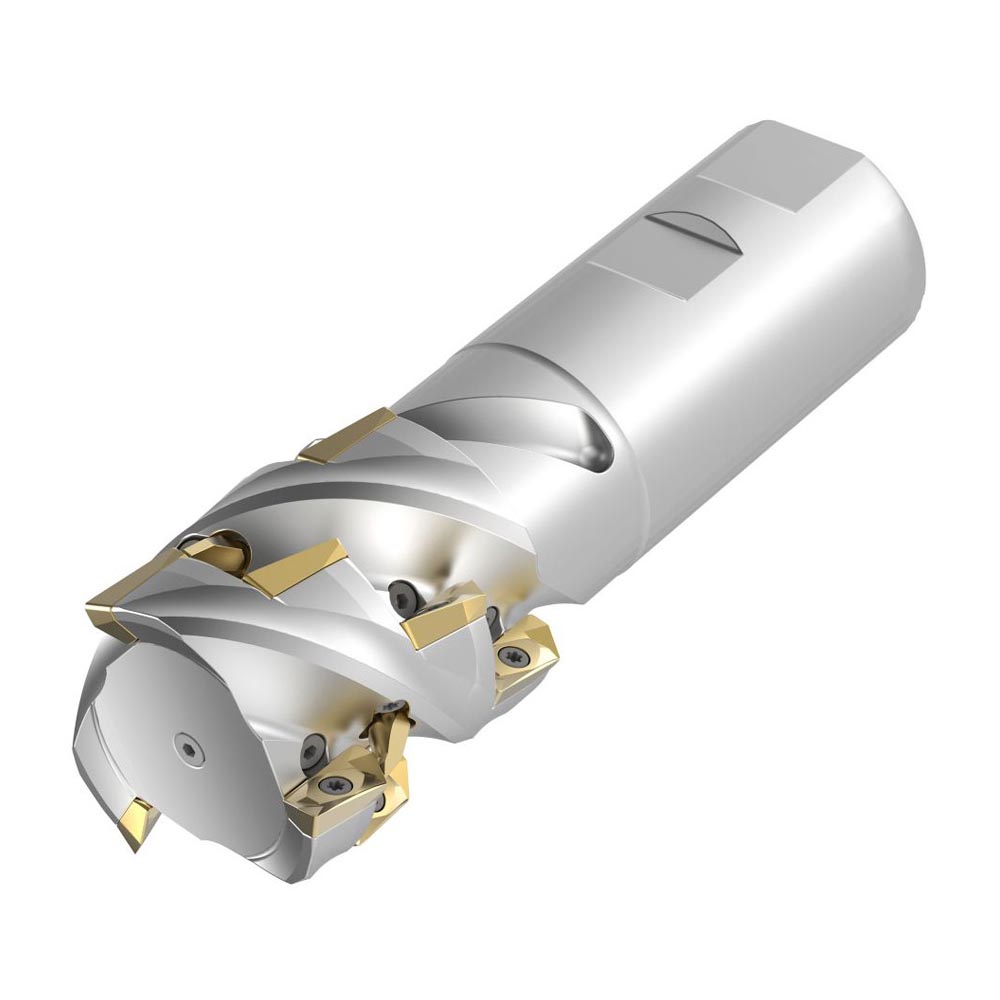

Kennametal M1H40J3R65B32S90ED14C9 Mill 1-14 Helical End Mill D = 40 Z = 3

SKU: KEN3743034S/C: 3743034
Usually ships in 3 daysSubject to availability

$1,172.56inc
GST

Price Match

Kennametal was founded on the strength of a technological breakthrough, and a list of highlights demonstrates that it has continued to lead its industry in innovation.

  • Aggressive ramping rates.
  • Generates superior surface finish.
  • Mill 90° walls.
  • Axial support pins.
  • Unique coolant nozzles.
  • Kennametal leads the industry in innovation
More Info
View all:
Technical Details
1st Max Cut Depth40.8100mm
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia.32.0000mm
Body Diameter Max38.5200mm
Body Material GroupSteel
Clamping TypeScrew Clamping
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitAngular Axial w/ Nozzle
Coolant SupplyYes
Effective Cutting Dia.40.0000mm
FamilyIndexable Helical Shell Mills
Hand of ToolR - Right
Insert ShapeE - Parallelogram 70°
Machining OperationPocketing/Die Milling
MaterialSteel
Max Ramping Angle4.80°
Milling TypeEnd Mill
Number of Flutes3
Number of Inserts9
Overall Length126.0000mm
Position of InsertLay Down
Rake Angle StylePositive-Negative
Shank Length61.0000mm
