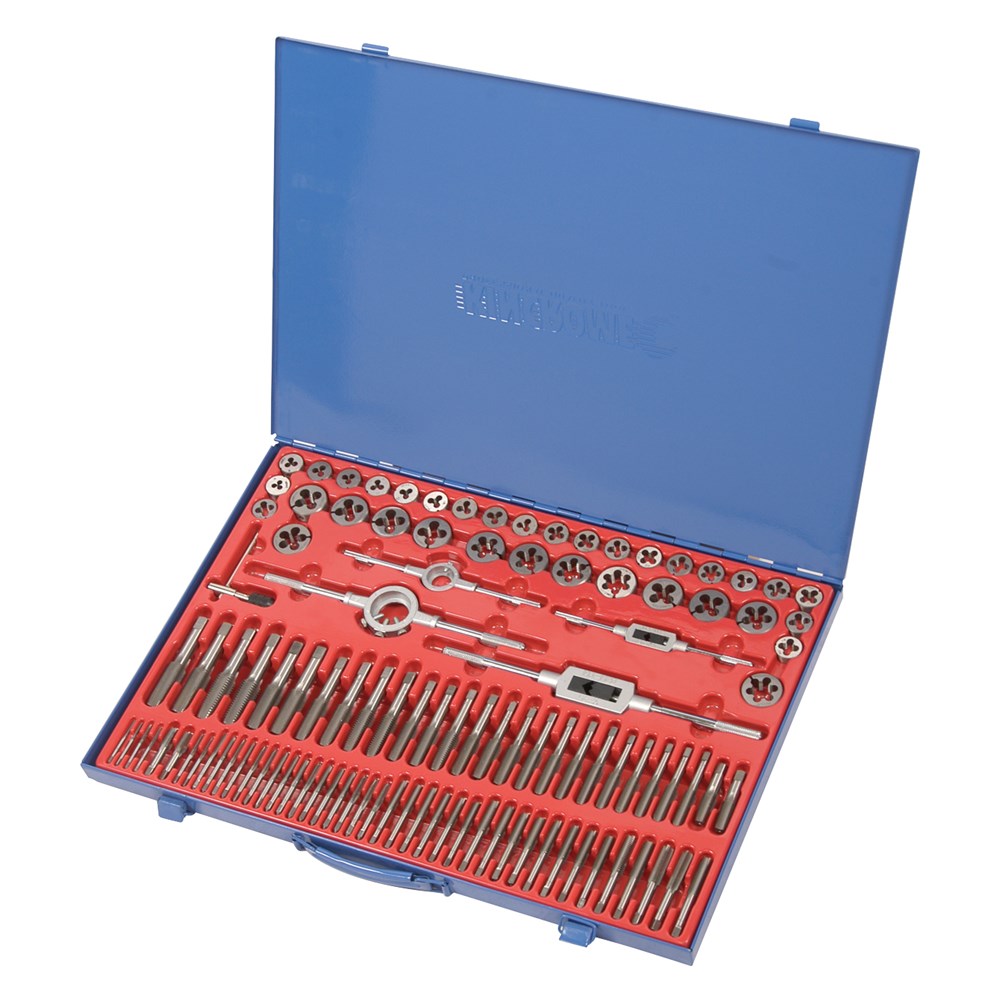

Kincrome Tap & Die Set 110 Piece NC / NF / Metric

Tap and Dies manufactured from Tungsten steel. Suitable for cleaning and cutting threads on mild steel and aluminium. Contents held in plastic insert within a metal storage case.

Contents:
• 1 Adjustable Tap Wrench: 1/8″ – 1/2″ (3 – 13mm) capacity.
• 1 Adjustable Tap Wrench: 1/4″ – 3/4″ (6-19mm) capacity.
• 1 Die Holder for 1″(25mm) O/D Dies.
• 1 Die Holder for 1.1/2″(38mm) O/D Dies.
• 1 “T” type wrench 1/4″(6mm) capacity.
• 70 taps (1 of each taper and bottoming taps in 35 sizes as mentioned below)
• 22 1″ O/D round dies for sizes up to M11 x 1.5.
• 13 1.1/2″ O/D round dies for sizes up to M18 x 1.5.

Taps Sizes:
4NC40, 6NC32, 8NC32, 10NC24, 12NC24, 10NF32, 1/4″NC20, 1/4″NF28, 1/4″NS24, 1/4″NS40, 5/16″NC18, 3/8″NC16, 3/8″NF24, 7/16″NC14, 7/16″NF20, 1/2″NC10, 1/2″NF20, 9/16″NC12, 9/16″NF18, 5/8″NC11, 5/8″NF18, 3/4″NC10, 3/4″NF16, 1/8″NPT27, 1/8″NPT18,
M6 x 1.0, 8 x 1.25, 10 x 1.5, 10 x 1.0, M11 x 1.5, 12 x 1.25, 12 x 1.75, 14 x 1.25, 18 x 1.5.

(Individual Tap & Dies Not Available)
