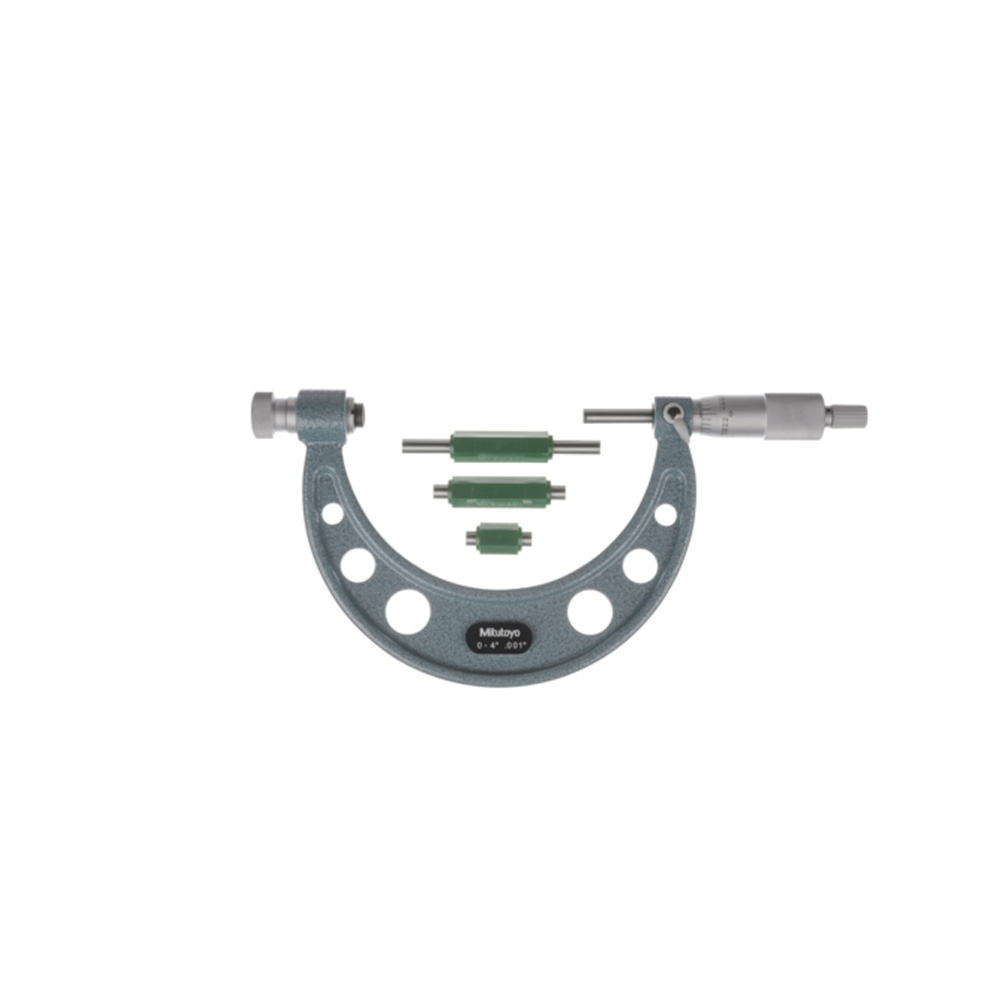

Mitutoyo Outside Micrometer with Ratchet Stop 0-4″ Range, .001″ Graduation with 4 Interchangeable Anvils

SKU: 104-149S/C: 104-149
Usually ships in 3 daysSubject to availability

$432.94inc
GST

The interchangeable anvil micrometer has a wide measuring range equivalent to 4 or 6 standard micrometers – Easy interchangeable anvils in 25mm or 1″ step permit wide range of measurements – Interchangeable anvils, setting standards and spanner wrench are supplied with each micrometer – Glare-free satin chrome finished sleeve and thimble with clear, crisp graduations – Ratchet stop for consistent measurements – Measuring face of the spindle carbide tipped. No carbide tip on the anvils – Anvils with carbide tipped measuring face are available on request – Quick and easy wear-adjustment – The frame is ribbed for strength and stability, and perforated for lightness – Complete with fitted carrying case – Diameter of measuring face: 6.35mm (.250″) for up to 300mm (12″), 8mm (.315″) for over 300mm (12″)

  • Global leader in metrology
  • Highest accuracy
  • Conformance to CE marking
  • Japanese design quality tools
Technical Details
Graduations0.001"
Range0-4"
ReadoutAnalog
TypeInterchangeable Anvils
